GOYOJO 384x288 Thermal Monocular
50Hz High-Frequency | 384x288 resolution, 17 μm
8x Magnification | 6 Colour Palettes | WIFI Hotspot
The GOYOJO Thermal Monocular G325 is an exceptionally high-value and high-performance thermal monocular suitable for anyone looking to experience thermal imaging capabilities. Equipped with a highly advanced 17-micron 384x288 resolution thermal sensor and 50Hz refresh rate, it's an excellent tool for hunters, campers, and outdoor enthusiasts who need to detect the presence of animals or people in complete darkness.
Multi-column
Built-In Photo And Video Recorder and Free 16 GB Space
GOYOJO G325 Thermal Monocular, featuring a built-in video recorder for seamless capture. With a simple touch, record intriguing scenes or snap photos effortlessly.
With free 16GB disk space storage, could store extensive footage and images internally, transferring them to a computer via Type-C for easy access. Cloud download and install the mobile application, log in, and connect your device to your smartphone via WiFi to access and manage your footage with ease.

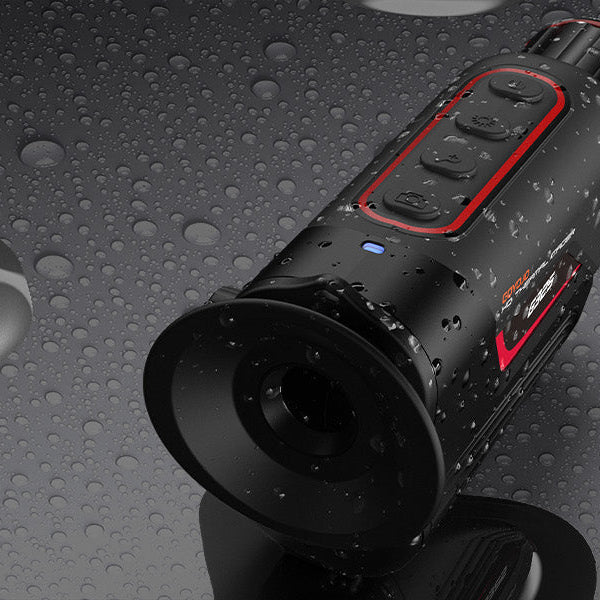

IP65 waterproof rating
The GOYOJO G325 Thermal Monocular is engineered with an IP65 waterproof rating, ensuring robust protection against water and dust ingress. This level of waterproofing signifies that the device is completely dust-tight and resistant to low-pressure water jets from any direction. Whether you're facing heavy rain, splashes, or dusty conditions, the G325 remains steadfast, allowing you to operate confidently in challenging environments without compromising performance.
Built-in rechargeable Lithium battery
The GOYOJO G325 Thermal Monocular features a built-in rechargeable lithium battery, offering over 6 hours of continuous usage on a single charge. Its user-friendly design allows for easy removal and replacement of the battery from the housing, ensuring minimal downtime during operation.

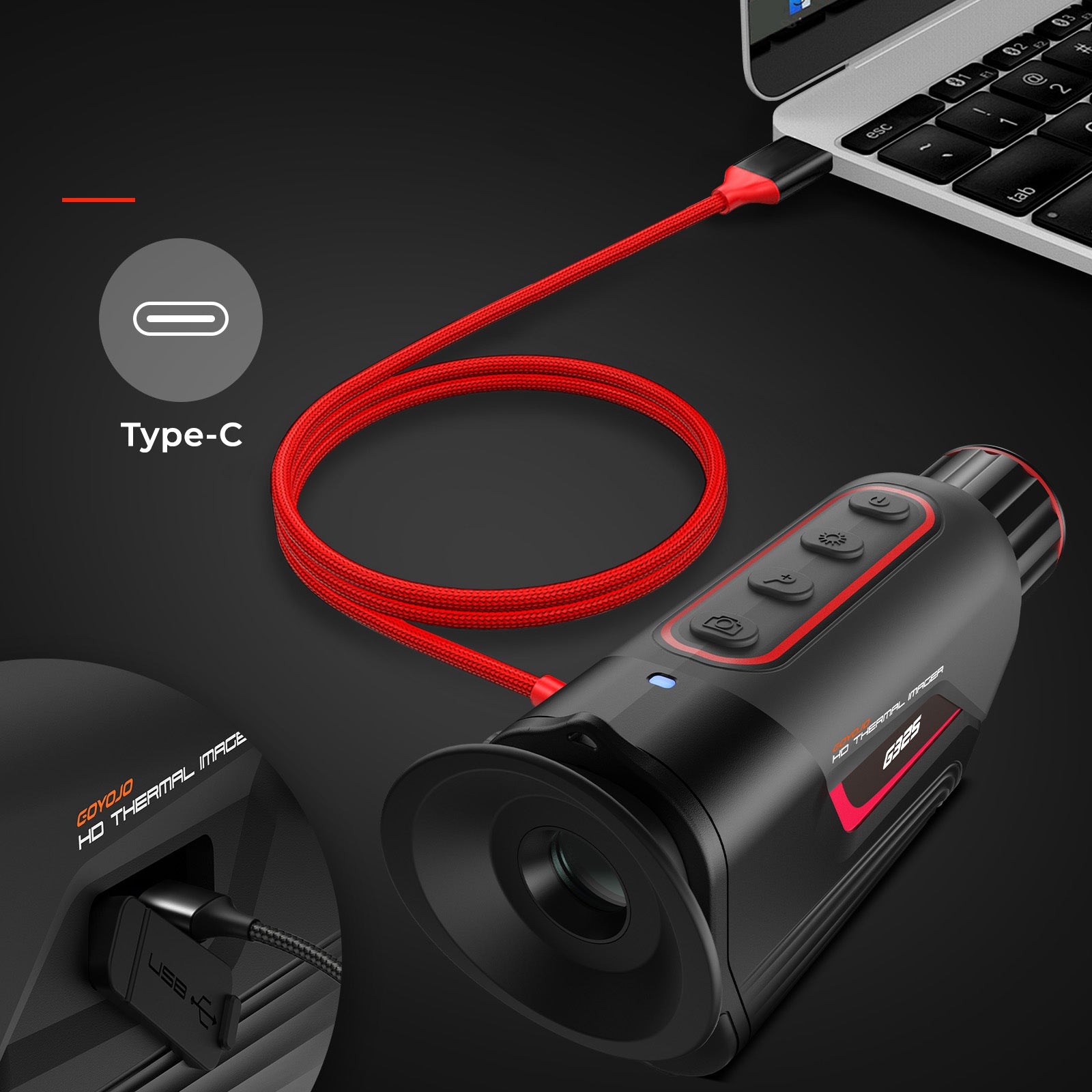

Additionally, the G325 offers versatile charging options: it can be charged internally using a dedicated charger or externally via Type-C from various power sources such as a PC, household power system, or portable power bank. Enjoy extended usage and flexibility in charging with the GOYOJO G325 Thermal Monocular.

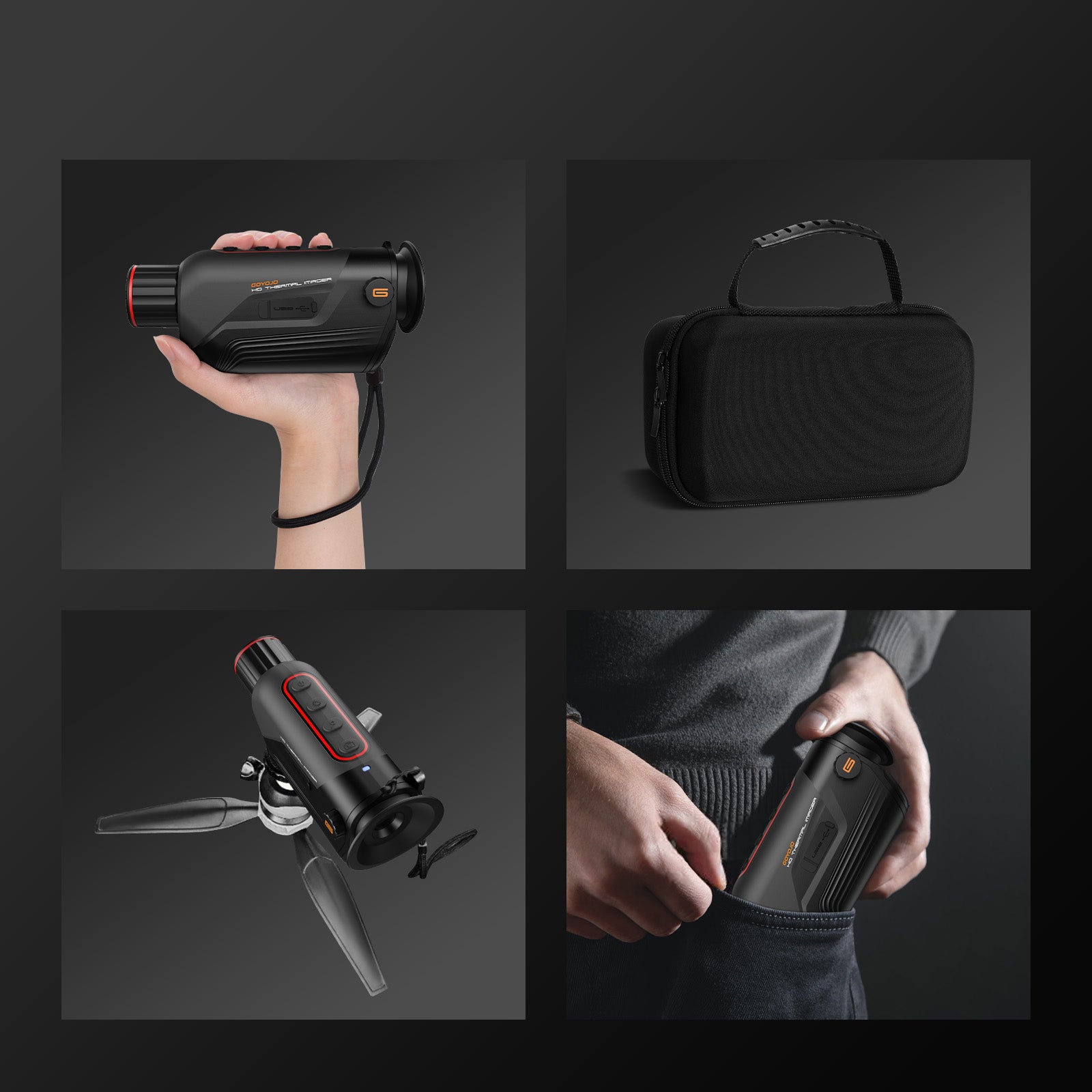

Pocket size and light weight, easy to carry and grip
The GOYOJO G325 Thermal Monocular is compact in size and lightweight for easy portability. With a sleek and pocket-sized design, it weighs only 345 grams, making it effortless to carry during outdoor adventures or surveillance missions. Its symmetrical design and linear button arrangement on the top panel ensure comfortable grip and operation, catering to both right-handed and left-handed users alike.
Specifications
Infrared
| Type | Thermal Monocular |
| Brand | GOYOJO |
| Model | G315/G325 |
| Focal Length |
G315:15mm G325:25mm |
| Field of View |
G315:24.6°x18.5° G325:14.9°x11.2° |
| Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Arrays |
| Resolution | 384x288 |
| Pixel Size | 17μm |
| Working Wavelength | 8~14μm |
| NET D | <40mK @25°C,F#1.0,50Hz |
| Frame Rate | ≤50Hz |
| Focus Method | Manual Focus |
| Product Dimensions | 155.9x75.4x60.8mm |
| Product Weight | 380g |
Distance
| Recognition Distance | |
|
Human (1.7mx0.5m x0.3m) |
GR315: 250m GR325: 416m |
|
Vehicle (4.5mx2.0mx1.5m) |
GR315: 367m GR325: 612m |
| Detection Distance | |
|
Human (1.7mx0.5m x0.3m) |
GR315: 1000m GR325: 1666m |
|
Vehicle (4.5mx2.0m x1.5m) |
GR315: 1470m GR325: 2450m |
Parts
| Battery Type | Rechargeable Li-ion Battery |
| Battery Capacity | 3200mAh |
| Battery Life | >6 hours |
| Display Type | OLED |
| Display Resolution | 800x600 |
| Screen Size | 0.32 inches |
| Digital Zoom | 1x/2x/4x/8x |
| Color Modes |
White Hot, Black Hot, Red Hot, Rainbow,lron Red, Low Light |
| Picture-in-Picture | Supported |
Storage
| Capacity | Built-in 16G EMMC |
| Image Capture | Supported |
| Video Recording | Supported |
| Image/Video Format | JPG/MP4 |
| USB |
Charging/Export Images and Videos/CVBS |
